Anomalous Coronary Artery From the Opposite Sinus (ACAOS): Technical Challenges During Percutaneous Coronary Intervention

Santosh Kumar Sinhaa, b, Mahmodula Razia, Anupam Mahrotraa, Puneet Aggarwala, Anupam Singha, Lokendra Rekwala, Sunil Tripathia, Nishant Kumar Abhishekha, Vinay Krishnaa

aDepartment of Cardiology, LPS Institute of Cardiology, G.S.V.M. Medical College, Kanpur, Uttar Pradesh, 208002, India
bCorresponding Author: Santosh Kumar Sinha, Department of Cardiology, LPS Institute of Cardiology, G.S.V.M. Medical College, Kanpur, Uttar Pradesh, 208002, India

Manuscript submitted November 9, 2017, accepted November 16, 2017
Short title: ACAOS
doi: https://doi.org/10.14740/cr630w

Abstract▴Top

Anomalies of the coronary arteries are reported in 1-2% of patients among diagnostic angiogram. Ectopic origin of right coronary artery (RCA) from opposite sinus is one of the most common and they are mainly benign, but at times may be malignant. We report a case of a 69-year-old male who underwent early invasive percutaneous coronary intervention for non-ST-segment elevation myocardial infarction (NSTEMI) where RCA arising from left sinus at the root of left main artery was culprit and various technical challenges were encountered while intervening in form of cannulation to tracking of hardwares. RCA was cannulated with floating wire technique using hockey stick guide catheter and revascularized by deployment of 3.5 × 38 mm Promus Premier Everolimus eluting stent (Boston Scientific, USA). To the best of our knowledge, this is the first ever report of ectopic RCA being revascularized by using hockey stick catheter.

Keywords: Anomalous right coronary artery; Floating wire technique; Hockey stick guide; Early invasive intervention; Non-ST segment elevation myocardial infarction

Introduction▴Top

Malformation within coronary buds on the aortic sinuses or vascular plexuses to which they connect during fetal development leads to coronary artery anomalies whose incidence varies from 0.6% to 1.5%, where patients may be asymptomatic or may present with stormy course [1-3]. Incidence of ectopic right coronary artery (RCA) from left aortic sinus is 0.92% and by nature, is benign and an incidental finding on coronary angiogram [3]. Sometimes, it may be complicated with atherosclerosis and present with various spectra of coronary artery disease. Intervening such artery is a different scenario as different guide catheters with variable support and tracking of hardwares become paramount issue.

Case Report▴Top

A 69-year-old male smoker with a past history of diabetes mellitus and dyslipidemia presented with retrosternal chest pain and profuse sweating of 12 h duration. His physical examination and biochemistry were all unremarkable. Echocardiography revealed mild hypokinesia in RCA territory with ejection fraction of 49%. Electrocardiogram revealed ST depression and T inversion in II, III, aVF, and V1-V3. In the laboratory analysis, creatine kinase MB (CKMB) was 97 U/L (upper limit 25 U/L), and troponin I was 5.89 ng/mL (upper limit 0.01 ng/mL). In lieu of ongoing angina and high troponin level, he was taken for early invasive coronary intervention through femoral route after proper consent. He was preloaded with prasugrel 60 mg, aspirin 325 mg and atorvastatin 80 mg. The 6-F JR3.5 and JL3.5 Proflo™ diagnostic catheters (Medtronic, USA) were used for catheterization after administering 2,500 U of heparin. Basal angiogram revealed normal left system (left anterior descending artery and left circumflex artery) and ectopic RCA (arising near the root of left main trunk) from left aortic sinus with downward course showing discrete eccentric critical lesion in mid segment with 95% stenosis (Fig. 1a, b). Percutaneous intervention of culprit artery was planned with further administration of 7,000 U of heparin. We tried to cannulate RCA with Judkins left and right (JL, JR), multipurpose (MPA 1, 2), Amplatz left (AL), Amplatz right (AR), and Tiger diagnostic catheter (Terumo, Japan), but failed to cannulate selectively because of its anomalous origin and course. Finally, hockey stick catheter (Boston Scientific, USA) was kept afloat near its ostia by giving a counter clockwise turn to keep it little away from left main trunk (Figs. 2, 3a). We provided a big curve to 0.014" runthrough wire (Terumo, Japan) and by floating in the left sinus, RCA was cannulated and wire was parked distally (Fig. 3a). Lesion was predilated with 2.5 × 10 mm Minitrak balloon (Abott, USA) and stented with 3.5 × 38 Promus Premier stent (Everolimus eluting stent, Boston Scientific, USA) deploying at 10 atm pressure (Figs. 3b, 4a, b) and further postdilated with 3.5 × 10 mm non-compliant Minitrak balloon at 20 atm pressure achieving TIMI III flow (Fig. 5). His symptom and ECG stabilized. Multidetector coronary computer tomography angiogram (MDCT) showed the aberrant RCA arising from left coronary sinus near left main ostium (Fig. 6a, b). He was discharged on the third day with aspirin 150 mg/day, prasugrel 10 mg/day, atorvastatin 80 mg/day, metoprolol 100 mg/day and ramipril 2.5 mg/day. Patient is doing excellent since then with regular follow-up at our institute.

Figure 1.
Click for large image

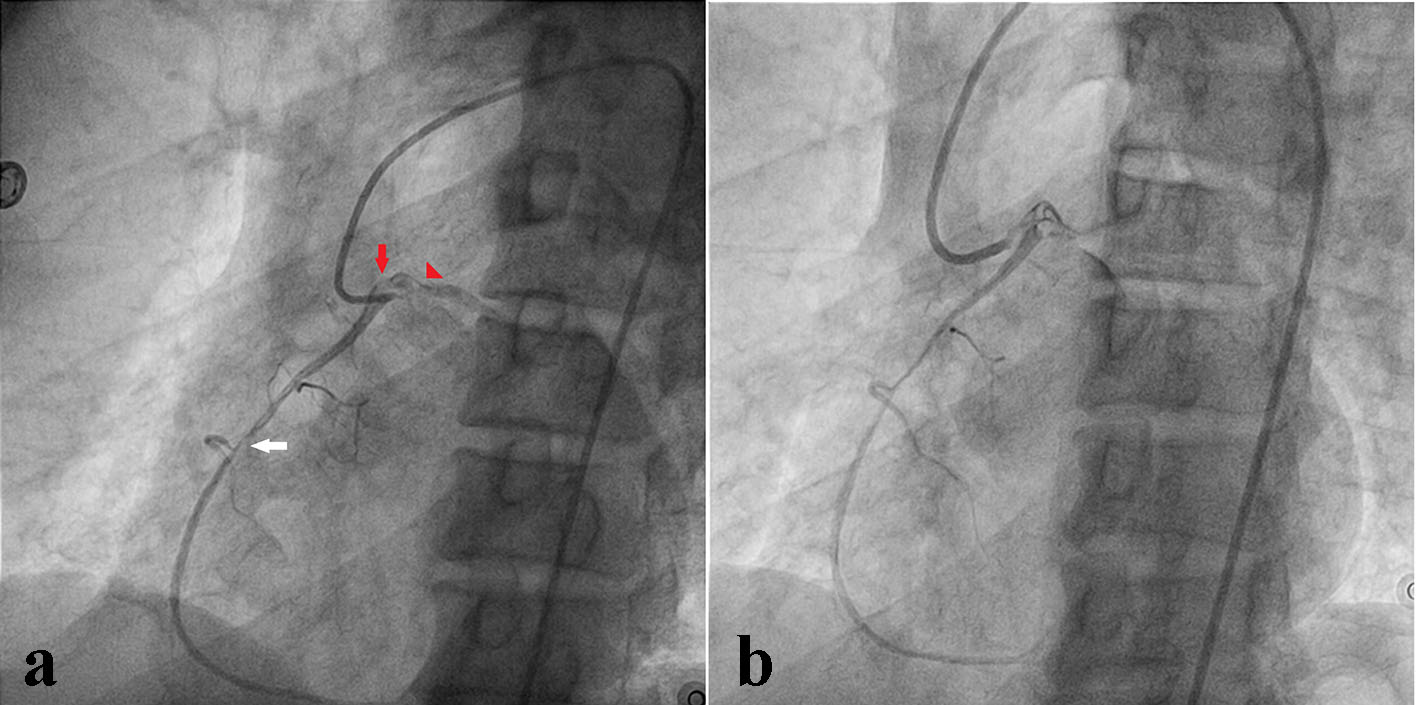

Figure 1. Right coronary artery arising from left aortic sinus near the base of left main trunk showing discrete eccentric critical lesion in mid segment (a). Failure to cannulate right coronary artery with various catheter (b).

Figure 2.
Click for large image

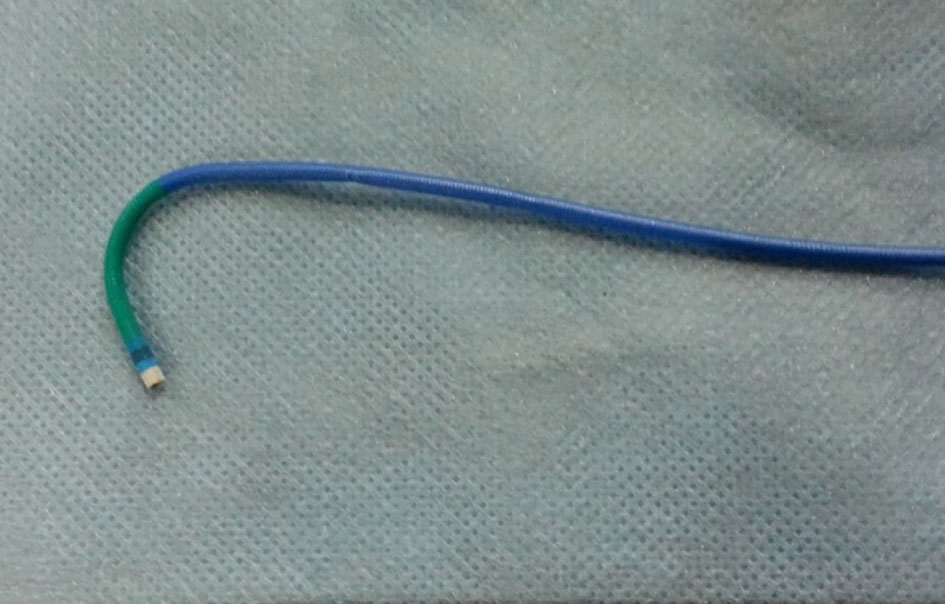

Figure 2. Typical design of hockey stick guiding catheter.

Figure 3.
Click for large image

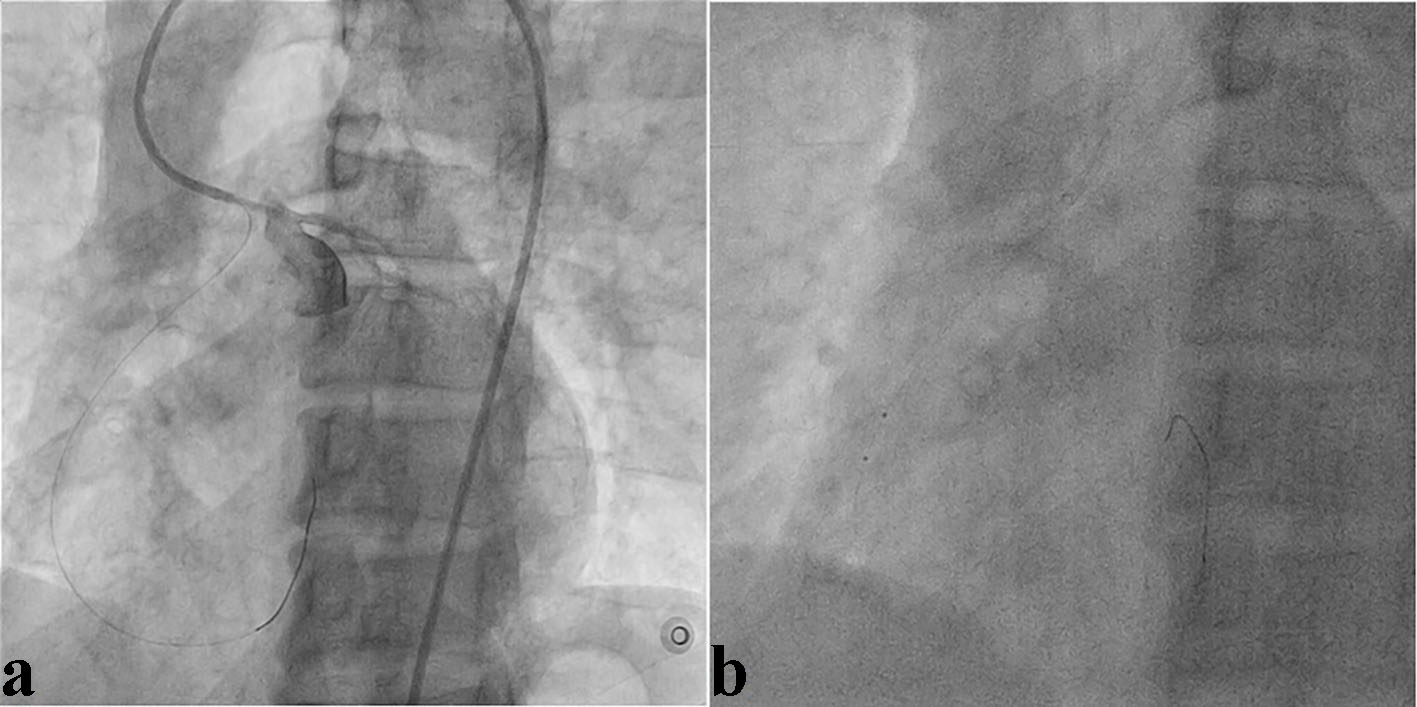

Figure 3. Hockey stick guiding catheter was kept afloat near its ostia (a). Right coronary artery being cannulated with floating wire technique and lesion being predilated (b).

Figure 4.
Click for large image

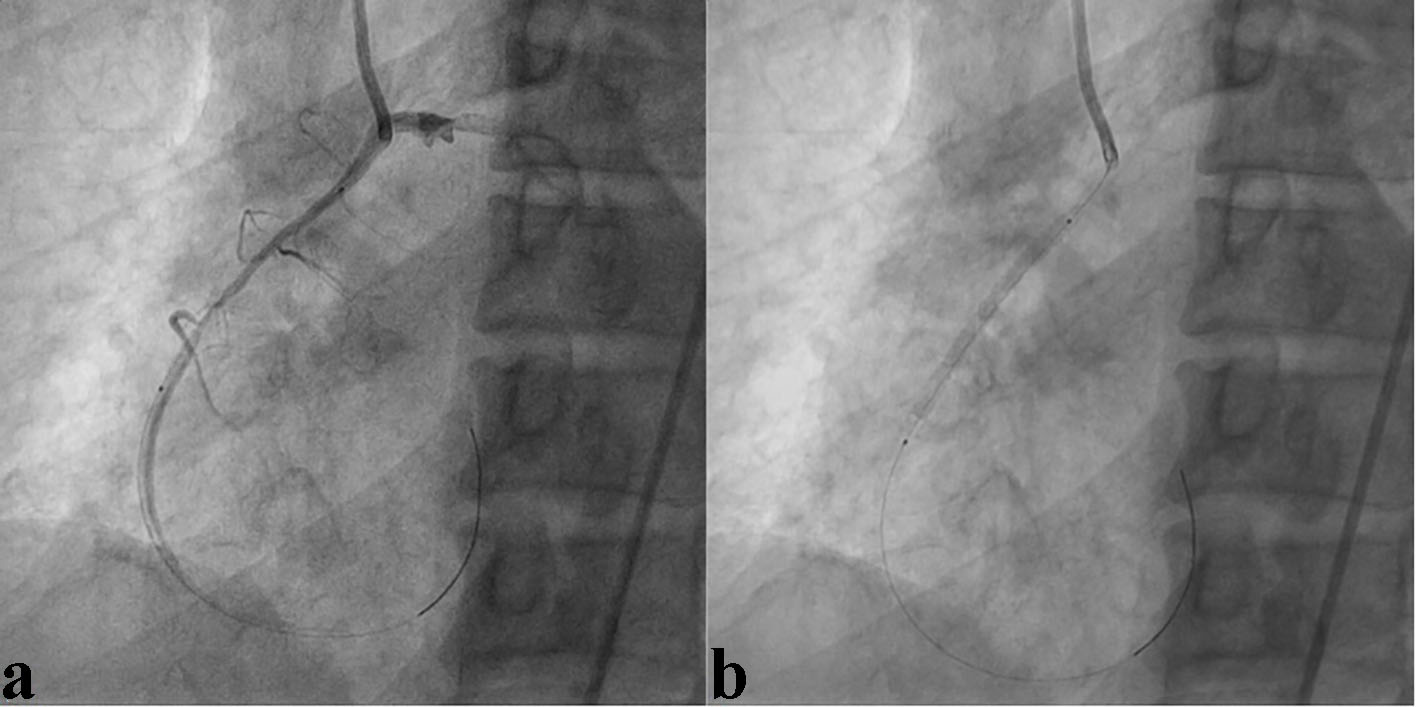

Figure 4. Lesion being stented with 3.5 × 33 mm Xience Prime stent at 12 atm pressure (a, b).

Figure 5.
Click for large image

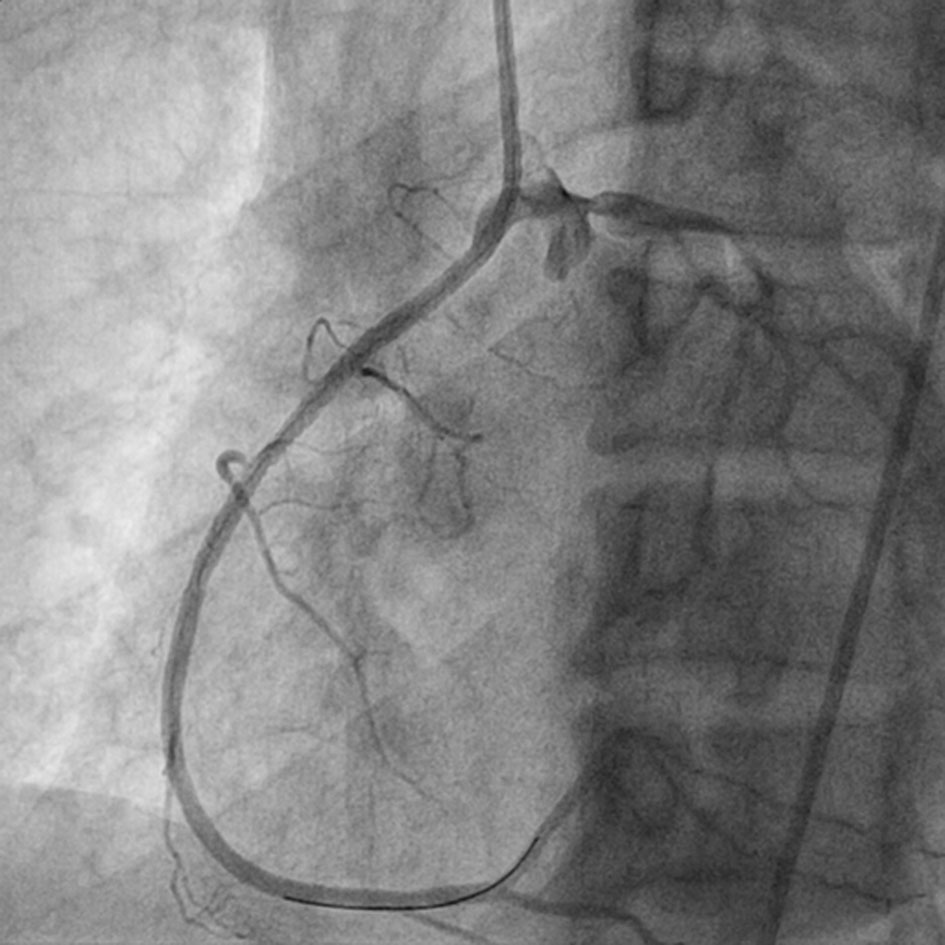

Figure 5. Right coronary artery showing TIMI III flow with well deployed stent after high pressure post dilatation.

Figure 6.
Click for large image
Figure 6. MDCT showing ectopically arising RCA with from left sinus (a). Volume rendered reconstruction from inside aorta showing RCA ostium (blue arrow head) lying in close vicinity of base of left main trunk (red arrow) (b).
Discussion▴Top

The most common locations of ectopic RCA are the left sinus which may be anterior, superior [4, 5] either from the left sinus itself or directly from the left main coronary artery or its vicinity [6]. Mostly they are an incidental finding diagnosed on routine angiogram and rarely present with coronary artery disease. During routine angiography, they can be cannulated selectively by conventional right diagnostic catheters (JR 3.5-4, AR 1-2), unconventional Williams no-torque curves, Tiger catheter or non-selective sinus root injection as support is not a consideration.

Data regarding successful percutaneous revascularization of ectopic RCA from left sinus are limited mostly in the form of small case series [7-9]. Selection of a guide catheter will depend upon dimensions of the aortic root, desired level of backup support, takeoff angle, location of the lesion, and the hardwares to be used during revascularization. RCA intervention using Judkins guiding catheters is associated with a lack of strong back-up support and an inability to deep-seat, whereas Amplatz guiding catheters although have excellent support but at the cost of risk of too deep intubation causing hemodynamic compromise and rarely ostial dissection [10].

Design of hockey stick catheter

Its unique design overcomes above limitations. Contrary to its name, it is L-shaped because of its primary and secondary curves and can be better considered as modified Amplatz catheter without its primary curve [10]. It provides an excellent back-up support and permits balloon tracking when enhanced back-up support is required. Technically, it is simple to use as it can easily engage and disengage without any clockwise or counter-clockwise rotations. Once engaged, it is gently withdrawn until its curve is straighten and comfortably seated in the ostia.

Sometimes, alignment is non-co-axial where guide may back out which can be circumvented by using floating wire technique. Since initial entry to anomalous RCA needs the floating of wire, we recommend the wider curve to be administered to the wire. Once wire is distally parked, guide can be deeply intubated with distally inflated appropriate sized balloon acting as an anchor but caution must be exercised if plaque is located in osteo-proximal segment. In one of the largest series of anomalous RCA by Sarkar et al [11], they have used JL, JR, Q-curve, and Voda catheter for RCA cannulation. To the best our knowledge, we are reporting for the first time the use of hockey stick catheter and floating wire technique for revascularization of anomalous RCA.
